Steiger Tiger III ST-450 Tractors
 |
|
Power: 470 hp
Date of manufacture : 1977 - 1982 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Steiger Tiger III ST-450 Power |
| Engine: | 470 hp
350.5 kW
|
| Drawbar (tested): | 369.76 hp
275.7 kW
|
| Steiger Tiger III ST-450 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | articulated power
|
| Brakes: | hydraulic disc
|
| Cab: | Safari Cab standard with air-conditioning.
|
| Transmission: | 6-speed full power shift with torque converter
|
| Photos |

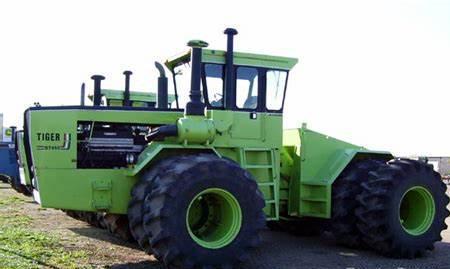

| | Steiger Tiger III ST-450 photos... |
| Capacity |
| Fuel: | 385 gal
1457.2 L
|
| Hydraulic system: | 48 gal
181.7 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 48 gal
181.7 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 5
|
| Pump flow: | 38 gpm
143.8 lpm
|
| SCV flow: | 12 gpm
45.4 lpm *Minimum
|
| | 25 gpm
94.6 lpm *Maximum
|
| Dimensions & Tires |
| Wheelbase: | 150 inches
381 cm
|
| Weight: | 45360 lbs
20575 kg
|
| Front tire: | 30.5x32
|
| Rear tire: | 30.5x32
|
| Full dimensions and tires ... |
| Tiger III ST-450 Serial Numbers |
| 1977: | 130-00001
|
| 1978: | 130-00047
|
| 1979: | 130-00097
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 90
|
| Batteries: | 4
|
| Battery CCA: | 625
|
| Battery volts: | 12
|
|
