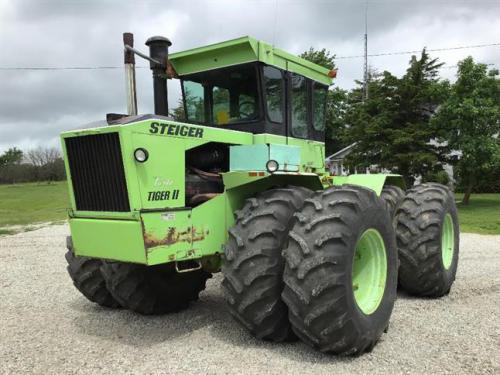

Steiger Turbo Tiger II ST-320 Tractors
 |
|
Power: 320 hp
Date of manufacture : 1974 - 1976 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $52,000 (1975 )
|
| Steiger Turbo Tiger II ST-320 Power |
| Engine: | 320 hp
238.6 kW
|
| Drawbar (claimed): | 262 hp
195.4 kW
|
| PTO (claimed): | 305 hp
227.4 kW
|
| Steiger Turbo Tiger II ST-320 Engine |
| Mechanical |
| Chassis: | 4x4 4WD
|
| Cab: | Cab standard with optional heat and air-conditioning.
|
| Transmission: | 10-speed
|
| Photos |
| | Steiger Turbo Tiger II ST-320 photos... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 25 gpm
94.6 lpm
|
| Steering flow: | 18 gpm
68.1 lpm
|
| Dimensions & Tires |
| Wheelbase: | 121.5 inches
308 cm
|
| Weight: | 24000 lbs
10886 kg
|
| Front tire: | 23.1-30
|
| Rear tire: | 23.1-30
|
| Full dimensions and tires ... |
| Turbo Tiger II ST-320 Serial Numbers |
| 1974: | 30101
|
| 1975: | 30198
|
| 1976: | 30430
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 62
|
| Battery volts: | 12
|
|
