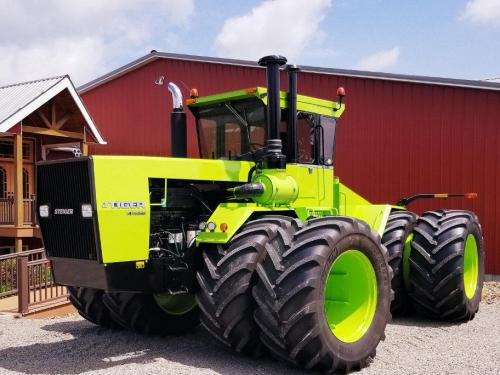

Steiger Tiger IV KP-525 Tractors
 |
|
Power: 525 hp
Date of manufacture : 1984 - 1986 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Steiger Tiger IV KP-525 Power |
| Engine: | 525 hp
391.5 kW
|
| Drawbar (claimed): | 420 hp
313.2 kW
|
| Steiger Tiger IV KP-525 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | outboard planetary
|
| Steering: | articulated power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 24-speed six-speed power shift
|
| Photos |
| | Steiger Tiger IV KP-525 photos... |
| Capacity |
| Fuel: | 385 gal
1457.2 L
|
| Hydraulic system: | 48 gal
181.7 L
|
| Hydraulics |
| Type: | open center load sensing
|
| Capacity: | 48 gal
181.7 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 4 or 5
|
| Pump flow: | 38 gpm
143.8 lpm
|
| Dimensions & Tires |
| Wheelbase: | 150 inches
381 cm
|
| Weight: | 40720 lbs
18470 kg
|
| Front tire: | 30.5L-32
|
| Rear tire: | 30.5L-32
|
| Full dimensions and tires ... |
| Tiger IV KP-525 Serial Numbers |
| 1984: | 131-2101
|
| 1985: | 131-5001
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 90
|
| Batteries: | 4
|
| Battery volts: | 12
|
|
