Steyr 9094 Tractors

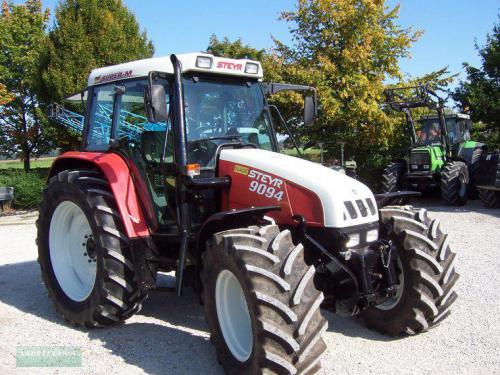

Steyr 9094
Power: 94 hp
Date of manufacture :
1993 - 1995
Production
Manufacturer:Steyr
Type:Row-Crop tractor
Steyr 9094 Power
Engine:94 hp
70.1 kW
PTO (claimed):87 hp
64.9 kW
Steyr 9094 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic*Optional
 pneumatic*Optional
Cab:Cab standard with heat. Air-conditioning optional.
Transmissions:16-speed synchronized
 16-speed
Hydraulics
Pressure:2538 psi
175.0 bar
Pump flow:13.2 gpm
50.0 lpm
 25.4 gpm
96.1 lpm *Optional
Total flow:28.3 gpm
107.1 lpm
 40.4 gpm
152.9 lpm *Optional
Tractor hitch
Rear lift:9922.5 lbs
4500 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Engine RPM:390@1933
540@2045
540E@1506
1000@2130
Front PTO:optional
Front RPM:1000
Engine RPM:1000@1933
Dimensions & Tires
Wheelbase:97.5 inches
247 cm
Weight:8,644 lbs
3920 kg
Front tire:14.9R24
Rear tire:16.9R38
Full dimensions and tires ...
