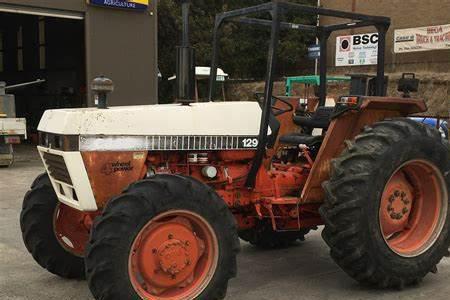

Case 1290 Tractors

Case 1290
Power: 58 hp[P]
Date of manufacture :
1980 - 1983
Production
Manufacturer:J.I. Case
Type:Utility tractor
Factory:Meltham Mills, Huddersfield, England
Original price:$20,100 (1983 )
J.I. Case 1290 Power
PTO (claimed):53 hp
39.5 kW
Drawbar (tested):44.81 hp
33.4 kW
PTO (tested):53.73 hp
40.1 kW
J.I. Case 1290 Engines
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:mechanical drum
Cab:Two-post ROPS.
Transmission:12-speed synchromesh
Capacity
Fuel:19 gal
71.9 L
Hydraulic system:7.1 gal
26.9 L
Hydraulics
Type:open center
Capacity:7.1 gal
26.9 L
Valves:1 or 2
Pump flow:7.25 gpm
27.4 lpm
Tractor hitch
Rear Type:2/1
Power Take-off (PTO)
Rear PTO:transmission
 independent*Optional
Rear RPM:540
Dimensions & Tires
Wheelbase:83 inches
210 cm
Weight:5,390 lbs
2444 kg
Front tire:7.50-16
Rear tire:16.9-30
1290 Serial Numbers
Location:Serial number stamped into the top of the tractor's frame on the right side, next to the engine.
1980:11050101
1981:11050444
1982:11053999
1983:11055483

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:26
Battery volts:12
