| Production |
| Manufacturer: | J.I. Case
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Original price: | $30,000 (1978 )
|
| J.I. Case 1570 Power |
| Drawbar (claimed): | 152 hp
113.3 kW
|
| PTO (claimed): | 180 hp
134.2 kW
|
| Drawbar (tested): | 147.89 hp
110.3 kW
|
| PTO (tested): | 180.41 hp
134.5 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard.
|
| Transmission: | 12-speed three-speed power shift
|
| Photos |

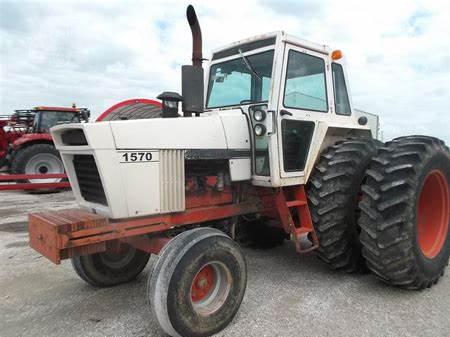

| | J.I. Case 1570 photos... |
| Hydraulics |
| Valves: | 2
|
| Pump flow: | 20 gpm
75.7 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Engine RPM: | 1000@2100
|
| Dimensions & Tires |
| Wheelbase: | 104 inches
264 cm
|
| Weight: | 13000 to 16000 pounds
|
| Front tire: | 11.00-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 1570 Serial Numbers |
| Location: | Left side of the steering console.
|
| 1976: | 8797501
|
| 1977: | 8809950
|
| 1978: | 8830001
|
how to read serial numbers...
| |
