Case 1694 Tractors

Case 1694
Power: 112 hp
Date of manufacture :
1983 - 1984
Production
Manufacturer:J.I. Case
Type:Utility tractor
J.I. Case 1694 Power
Engine:112 hp
83.5 kW
PTO (claimed):99 hp
73.8 kW
J.I. Case 1694 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:disc
Transmission:12-speed partial power shift

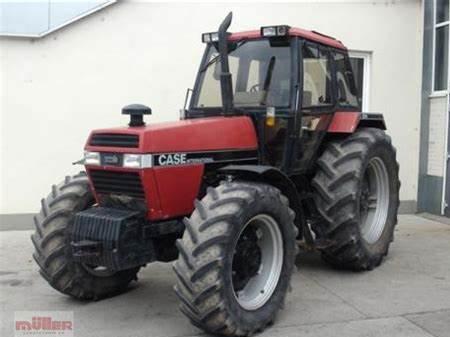

Photos
J.I. Case 1694 photos...
Hydraulics
Pressure:2600 psi
179.3 bar
Rear valves:1 to 3
Total flow:10.5 gpm
39.7 lpm
 20.1 gpm
76.1 lpm (tandem)
Steering flow:7.7 gpm
29.1 lpm
Steering press.:1850 psi
127.6 bar
Tractor hitch
Rear Type:II
Rear lift (at ends):7,440 lbs
3374 kg
Rear lift (at 24"/610mm):6,290 lbs
2853 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:100 inches
254 cm
Weight:9,580 lbs
4345 kg
Front tire:13.6-28
Rear tire:16.9-38
Electrical
Charging system:alternator
Charging amps:45
 65 (heavy duty)
Battery CCA:420
 550 (heavy duty)
Battery volts:12
Battery AH:96
 128 (heavy duty)
