Navigation: Home > Case > 1494

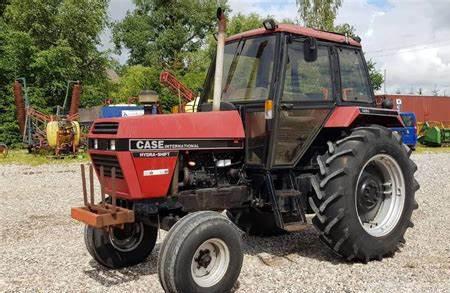

Case 1494 Tractors

Case 1494
Power: 85 hp
Date of manufacture :
1983 - 1984
Production
Manufacturer:J.I. Case
Type:Utility tractor
Factory:Meltham Mills, Huddersfield, England
Original price:$24,100 (1988)
J.I. Case 1494 Power
Engine:85 hp
63.4 kW
PTO (claimed):75 hp
55.9 kW
J.I. Case 1494 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:disc
Cab:Cab optional with air-conditioning.
Transmissions:12-speed synchromesh
 12-speed partial power shift
Hydraulics
Type:open
Pressure:2475 psi
170.7 bar
Valves:1 to 3
Total flow:8.5 gpm
32.2 lpm
 15.3 gpm
57.9 lpm (tandem)
Steering flow:7.7 gpm
29.1 lpm
Steering press.:1850 psi
127.6 bar
Tractor hitch
Rear Type:II
Rear lift (at ends):5,366 lbs
2434 kg
Rear lift (at 24"/610mm):3,210 lbs
1456 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:88.5 inches
224 cm
Weight:7380 to 8180 pounds
Front tire:7.50-16
Rear tire:18.4-34
1494 Serial Numbers
Location:Right side of main frame
1983:11192050
1984:11192812

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:45
 65 (heavy duty)
Battery CCA:420
 550 (heavy duty)
Battery volts:12
Battery AH:96
 128 (heavy duty)
