Navigation: Home > Case > 2090

Case 2090 Tractors

Case 2090
Power: 120 hp[P]
Date of manufacture :
1979 - 1983
Production
Manufacturer:J.I. Case
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
Original price:$40,000 (1983)
J.I. Case 2090 Power
Drawbar (claimed):93 hp
69.4 kW
PTO (claimed):108 hp
80.5 kW
Drawbar (tested):93.17 hp
69.5 kW
PTO (tested):108.74 hp
81.1 kW
J.I. Case 2090 Engine
Mechanical
Chassis:4x2 2WD
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:Four-post ROPS. Silent Guardian cab with air-conditioning.
Transmissions:12-speed partial power shift
 8-speed

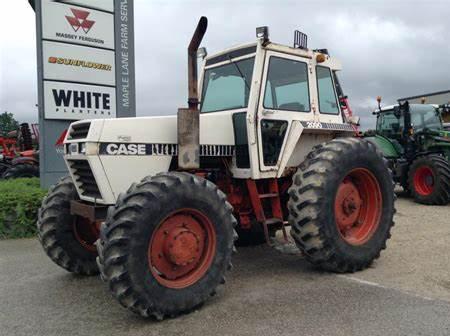

Photos
J.I. Case 2090 photos...
Hydraulics
Type:closed center
Pump flow:21 gpm
79.5 lpm
Tractor hitch
Rear Type:II
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:104 inches
264 cm
Weight:12,030 lbs
5456 kg
Front tire:10.00-16
Rear tire:18.4-34
2090 Serial Numbers
Location:Data plate on instrument panel
1978:8835443
1979:8840001
1980:9901001
1981:9910025
1982:9918830
1983:9924700

how to read serial numbers...
