Navigation: Home > Case > 2094

Case 2094 Tractors

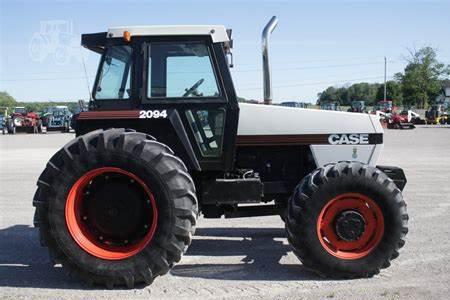

Case 2094
Power: 127 hp
Date of manufacture :
1984 - 0000
Production
Manufacturer:J.I. Case
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
Original price:$43,400 (1984 )
J.I. Case 2094 Power
Engine:127 hp
94.7 kW
Drawbar (claimed):100 hp
74.6 kW
PTO (claimed):110 hp
82.0 kW
Drawbar (tested):98.66 hp
73.6 kW
PTO (tested):111.50 hp
83.1 kW
J.I. Case 2094 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Four-post ROPS. Silent Guardian cab optional with air-conditioning.
Transmission:12-speed three-speed power shift
Capacity
Fuel:65 gal
246.0 L
 25 gal
94.6 L (optional auxiliary tank)
Hydraulic system:25 gal
94.6 L
Hydraulics
Type:closed center
Capacity:25 gal
94.6 L
Pressure:2250 psi
155.1 bar
Valves:2 to 4 (3 only with 4WD)
Pump flow:23 gpm
87.1 lpm
Steering flow:8 gpm
30.3 lpm
Steering press.:2000 psi
137.9 bar
Tractor hitch
Rear Type:II
Rear lift (at 24"/610mm):6,600 lbs
2993 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:104 inches
264 cm
 110 inches
279 cm *Optional long wheelbase.
Weight:10950 to 14190 pounds
Front tire:11.00x16
Rear tire:18.4x38
Full dimensions and tires ...
2094 Serial Numbers
Location:Inside cab or on right-front frame
1984:9931800

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:72
 105*Optional
Battery volts:12
