| Production |
| Distributor: | CaseIH
|
| Manufacturer: | Mitsubishi
|
| Type: | Compact Utility tractor
|
| Original price: | $13,100 (1991 )
|
| CaseIH 275 Power |
| Engine: | 31 hp
23.1 kW
|
| PTO (claimed): | 27 hp
20.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | manual
|
| | power optional
|
| Brakes: | hydraulic wet disc
|
| Cab: | Two-post folding ROPS. Optional sunshade.
|
| Transmission: | 9-speed synchromesh
|

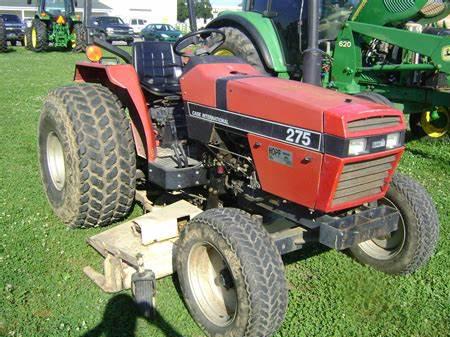

| Photos |
| | CaseIH 275 photos... |
| Capacity |
| Fuel: | 7.4 gal
28.0 L
|
| Hydraulic system: | 7.7 gal
29.1 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 7.7 gal
29.1 L
|
| Valves: | 0 to 2
|
| Total flow: | 7.3 gpm
27.6 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 2,000 lbs
907 kg
|
| Rear lift (at 24"/610mm): | 1,544 lbs
700 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Rear RPM: | 540/1150
|
| Mid PTO: | live
|
| Mid RPM: | 2400*Optional
|
| Dimensions & Tires |
| Wheelbase: | 70.9 inches
180 cm
|
| Weight: | 2600 to 2800 pounds
|
| Front tire: | 5.50-16
|
| Rear tire: | 12.4-24
|
| Full dimensions and tires ... |
| 275 Serial Numbers |
| Location: | Serial number on the right side of the Case IH 275 tractor frame, above the front axle.
|
photo of 275 serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 35
|
| Battery volts: | 12
|
|
