Power: 52 hp Date of manufacture : 1985 - 1990

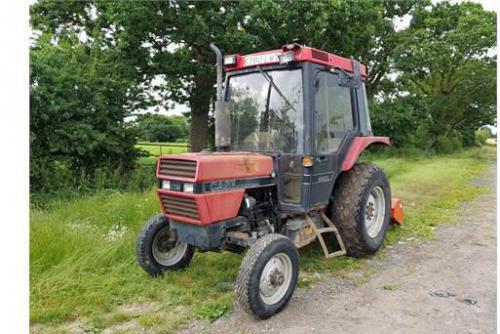

Production Manufacturer: CaseIH Type: Utility tractor Factory: Doncaster, England CaseIH 485XL Power Engine: 52 hp 38.8 kW PTO (claimed): 41 hp 30.6 kW CaseIH 485XL Engine Mechanical Chassis: 4x2 2WD Steering: hydrostatic power Brakes: wet disc Cab: Secura cab standard. Transmissions: 8-speed synchromesh   16-speed two-speed power shift Hydraulics Pressure: 2500 psi 172.4 bar Pump flow: 12.4 gpm 46.9 lpm Steering flow: 2.6 gpm 9.8 lpm Steering press.: 1550 psi 106.9 bar Tractor hitch Rear Type: II/I Control: Top link draft sensing. Rear lift: 3700 lbs 1678 kg Power Take-off (PTO) Rear PTO: independent Clutch: hydraulic wet disc Rear RPM: 540 Engine RPM: 540@1936 Dimensions & Tires Wheelbase: 84.25 inches 213 cm Weight: 5620 lbs 2549 kg Front tire: 7.50-16 Rear tire: 12.4-36 Full dimensions and tires ... Electrical Ground: negative Charging system: alternator Charging amps: 45 Battery CCA: 420 Battery volts: 12 Battery AH: 95

CaseIH 275	Power: 31 hp	Date of manufacture : 1986 - 1991

CaseIH 385	Power: 43 hp	Date of manufacture : 1985 - 1990

CaseIH 395	Power: 46 hp	Date of manufacture : 1991 - 1993

CaseIH 485	Power: 53 hp	Date of manufacture : 1985 - 1991

CaseIH 485XL	Power: 52 hp	Date of manufacture : 1985 - 1990

CaseIH 495	Power: 53 hp	Date of manufacture : 1991 - 1994

CaseIH 585	Power: 60 hp	Date of manufacture : 1985 - 1990

CaseIH 585XL	Power: 60 hp	Date of manufacture : 1985 - 1990

CaseIH 595	Power: 60 hp	Date of manufacture : 1991 - 1994
