Power: 73 hp Date of manufacture : 1985 - 1990

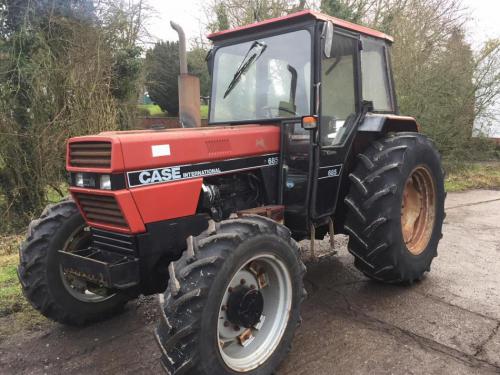

Production Manufacturer: CaseIH Type: Utility tractor Factory: Doncaster, England Original price: $22,300 (1990 ) Variants 685: utility 685-O: orchard CaseIH 685 Power Engine: 73 hp 54.4 kW Drawbar (claimed): 54 hp 40.3 kW PTO (claimed): 61 hp 45.5 kW Drawbar (tested): 52.90 hp 39.4 kW PTO (tested): 61.02 hp 45.5 kW CaseIH 685 Engine Mechanical Chassis: 4x2 2WD   4x4 MFWD 4WD Steering: power Brakes: differential hydraulic wet disc Cab: Two-post ROPS. Cab optional. Transmissions: 8-speed gear   16-speed two-speed power shift Photos CaseIH 685 photos... Capacity Fuel: 20 gal 75.7 L Hydraulic system: 9 gal 34.1 L Hydraulics Type: open center Capacity: 9 gal 34.1 L Pressure: 2500 psi 172.4 bar Valves: 1 or 2 Pump flow: 15.8 gpm 59.8 lpm   18.6 gpm 70.4 lpm *Optional Tractor hitch Rear Type: II/I Rear lift (at 24"/610mm): 3260 lbs 1478 kg Power Take-off (PTO) Rear PTO: independent Rear RPM: 540/1000 Dimensions & Tires Wheelbase: 84.5 inches 214 cm Weight: 5660 lbs 2567 kg Front tire: 7.50-16 Rear tire: 16.9-30 Full dimensions and tires ... 685 Serial Numbers Location: Serial number plate on the tractors front-right axle support 1985: 15000 1986: 18000 1987: 19558 1988: 23107 1989: 26391 1990: 29371 how to read serial numbers... Electrical Charging system: alternator Charging amps: 45

CaseIH 495	Power: 53 hp	Date of manufacture : 1991 - 1994

CaseIH 585	Power: 60 hp	Date of manufacture : 1985 - 1990

CaseIH 585XL	Power: 60 hp	Date of manufacture : 1985 - 1990

CaseIH 595	Power: 60 hp	Date of manufacture : 1991 - 1994

CaseIH 685	Power: 73 hp	Date of manufacture : 1985 - 1990

CaseIH 685XL	Power: 69 hp	Date of manufacture : 1985 - 1990

CaseIH 695	Power: 72 hp	Date of manufacture : 1991 - 1994

CaseIH 743 XL	Power: 67 hp	Date of manufacture : 1985 - 1989

CaseIH 745 XL	Power: 72 hp	Date of manufacture : 1985 - 1990
