CaseIH 595 Tractors

CaseIH 595
Power: 60 hp
Date of manufacture :
1991 - 1994
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Doncaster, England
Original price:$22,000 (1994 )
CaseIH 595 Power
Engine (gross):60 hp
44.7 kW
Engine (net):56 hp
41.8 kW
PTO (claimed):52 hp
38.8 kW
CaseIH 595 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Cab:Two-post ROPS. Cab optional with air-conditioning.
Transmissions:8-speed partially synchronized
 16-speed partial power shift
 8-speed synchronized shuttle
 16-speed creeper

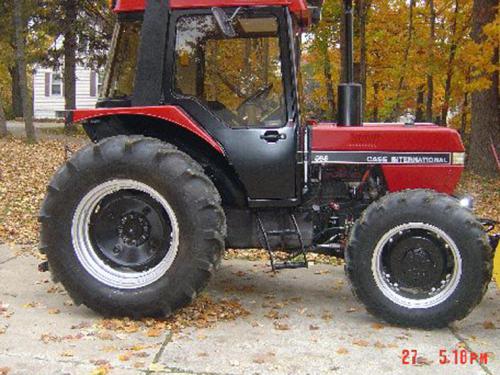

Photos
CaseIH 595 photos...
Capacity
ROPS Fuel:20 gal
75.7 L
Cab Fuel:29.5 gal
111.7 L
Hydraulic system:9 gal
34.1 L
Hydraulics
Type:open center
Capacity:9 gal
34.1 L
Valves:1
Pump flow:15.1 gpm
57.2 lpm
Tractor hitch
Rear Type:II
Rear lift:3530 lbs
1601 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:84.5 inches
214 cm
Weight:5640 to 7485 pounds
Front tire:7.50-16
Rear tire:14.9-24
595 Serial Numbers
Location:Serial number plate on the tractor's right-front axle support.
1991:JJE0001501
1992:JJE0018291
1993:JJE0025736
1994:JJE0033230

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Battery volts:12
