CaseIH 685XL Tractors

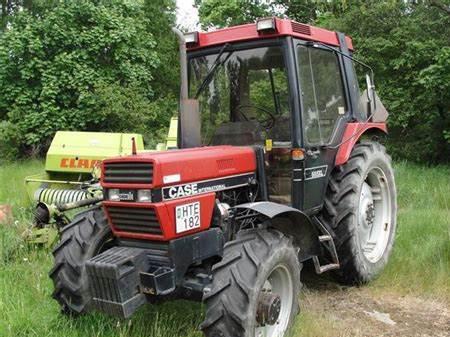

CaseIH 685XL
Power: 69 hp
Date of manufacture :
1985 - 1990
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Doncaster, England
CaseIH 685XL Power
Engine:69 hp
51.5 kW
PTO (claimed):64.2 hp
47.9 kW
CaseIH 685XL Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Secura cab standard.
Transmissions:8-speed synchromesh
 16-speed two-speed power shift
Hydraulics
Pressure:2500 psi
172.4 bar
Pump flow:12.4 gpm
46.9 lpm
Steering flow:2.6 gpm
9.8 lpm
Steering press.:1550 psi
106.9 bar
Tractor hitch
Rear Type:II/I
Control:Top-link draft sensing.
Rear lift:5250 lbs
2381 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540/1000
Engine RPM:540@2140
1000@2190
Dimensions & Tires
2WD Wheelbase:88.2 inches
224 cm
4WD Wheelbase:85.4 inches
216 cm
Weight:6700 to 7200 pounds
Front tire:10.00-16
2WD Rear tire:16.9-34
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:45
Battery CCA:420
Battery volts:12
Battery AH:95
