Navigation: Home > CaseIH > 695

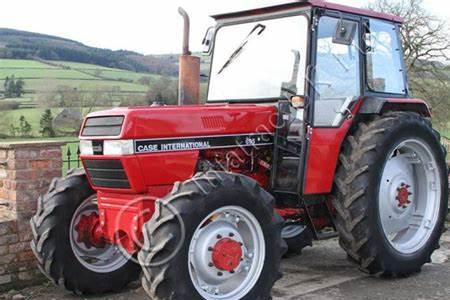

CaseIH 695 Tractors

CaseIH 695
Power: 72 hp
Date of manufacture :
1991 - 1994
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Doncaster, England
Original price:$24,800 (1994 )
CaseIH 695 Power
Engine (gross):72 hp
53.7 kW
Engine (net):68 hp
50.7 kW
PTO (claimed):62 hp
46.2 kW
Drawbar (tested):52.90 hp
39.4 kW
PTO (tested):61.02 hp
45.5 kW
CaseIH 695 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:differential hydraulic wet disc
Cab:Two-post ROPS. Cab optional with air-conditioning.
Transmissions:8-speed partially synchronized
 16-speed partial power shift
 8-speed synchronized shuttle
 16-speed creeper
Capacity
ROPS Fuel:20 gal
75.7 L
Cab Fuel:29.5 gal
111.7 L
Hydraulic system:9 gal
34.1 L
Hydraulics
Type:open center
Capacity:9 gal
34.1 L
Valves:1
Pump flow:15.8 gpm
59.8 lpm
Tractor hitch
Rear Type:II
Rear lift:3614 lbs
1639 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:88.7 inches
225 cm
Weight:5720 to 7585 pounds
Front tire:7.50-16
Rear tire:14.9-24
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
