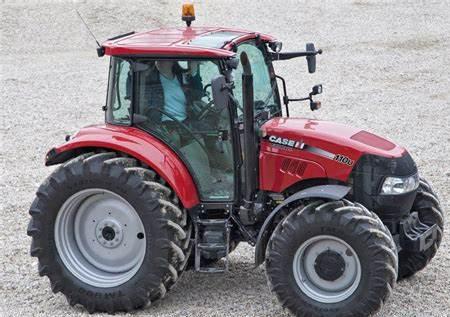

CaseIH Farmall 110U Tractors
|
|
Power: 107 hp
Date of manufacture : 0000 - 0000 |
Production |
Manufacturer: | CaseIH
|
Type: | Utility tractor
|
CaseIH Farmall 110U Power |
Engine: | 107 hp 79.8 kW
|
PTO (claimed): | 93 hp 69.4 kW
|
Drawbar (tested): | 71.6 hp 53.4 kW
|
PTO (tested): | 99.4 hp 74.1 kW
|
CaseIH Farmall 110U Engine |
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Final drives: | inboard planetary
|
Steering: | power
|
Brakes: | wet disc
|
Cab: | Cab standard with air-conditioning.
|
Transmissions: | 16-speed 4-speed power shift
|
| 16-speed
|
| 32-speed creeper
|
Hydraulics |
Type: | open center
|
Rear valves: | 2 or 3
|
Pump flow: | 21.1 gpm 79.9 lpm
|
Tractor hitch |
Rear Type: | II
|
Control: | electronic draft control
|
Rear lift (at 24"/610mm): | 8809 lbs 3995 kg
|
Drawbar: | Cat. 2
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Wheelbase: | 93.7 inches 237 cm
|
Weight: | 10031 lbs 4550 kg
|
Front tire: | 14.9R24
|
Rear tire: | 460/85R34
|
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Charging amps: | 120
|
Battery volts: | 12
|
|
