CaseIH Farmall 115U Tractors
 |
|
Power: 115 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | Italy
|
| Original price: | $90,922 (2015 )
|
| CaseIH Farmall 115U Power |
| Engine (gross): | 115 hp
85.8 kW
|
| PTO (claimed): | 98 hp
73.1 kW
|
| Drawbar (tested): | 73.0 hp
54.4 kW
|
| PTO (tested): | 104.7 hp
78.1 kW
|
| CaseIH Farmall 115U Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab with air-conditioning.
|
| Transmissions: | 12-speed power shuttle
|
| | 20-speed creeper power shuttle
|
| | 24-speed two-speed power shift
|
| Photos |

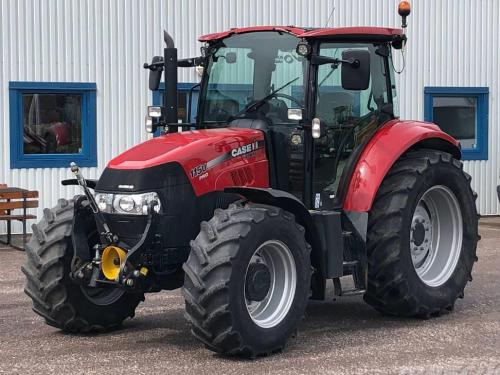

| | CaseIH Farmall 115U photos... |
| Hydraulics |
| Type: | open center
|
| Valves: | 2 to 3
|
| Pump flow: | 16.1 gpm
60.9 lpm
|
| | 21.1 gpm
79.9 lpm *Optional
|
| Steering flow: | 10 gpm
37.9 lpm
|
| | 11.4 gpm
43.1 lpm *Optional
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | electronic draft control
|
| Rear lift (at ends): | adjustable lbs
0 kg link ends
|
| Rear lift (at 24"/610mm): | 6393 lbs
2899 kg
|
| | 11949 lbs
5420 kg *Optional
|
| Drawbar: | Cat. II, swinging
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| | 540E*Optional
|
| Dimensions & Tires |
| Wheelbase: | 92.5 inches
234 cm
|
| Weight: | 9370 lbs
4250 kg
|
| Front tire: | 14.9R24
|
| Rear tire: | 18.4R34
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery volts: | 12
|
|
