Navigation: Home > CaseIH > Farmall 110V

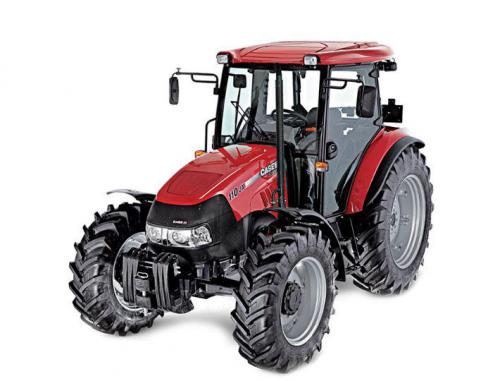

CaseIH Farmall 110V Tractors
 |
|
Power: 106 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Orchard/Vineyard tractor
|
| Original price: | $64,054 (2019 Syncro ROPS 2WD )
|
| Original price: | $80,215 (2019 Hi-Lo Cab 4WD )
|
| CaseIH Farmall 110V Power |
| Engine (gross): | 106 hp
79.0 kW
|
| PTO (claimed): | 93 hp
69.4 kW
|
| CaseIH Farmall 110V Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS. Cab optional with air-conditioning.
|
| Transmissions: | 16-speed partially synchronized
|
| | 16-speed power shift
|
| | 32-speed Hi-Lo power shift
|
| Hydraulics |
| Type: | open center
|
| Rear valves: | 2 or 3
|
| Mid valves: | 2*Optional
|
| Pump flow: | 16.9 gpm
64.0 lpm
|
| | 21.1 gpm
79.9 lpm *Optional with cab.
|
| Steering flow: | 11.4 gpm
43.1 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift (at ends): | 5732 lbs
2600 kg
|
| Rear lift (at 24"/610mm): | 3780 lbs
1714 kg
|
| Front Hitch: | optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/540E
|
| | 540/1000*Optional
|
| Dimensions & Tires |
| Wheelbase: | 96 inches
243 cm
|
| Weight: | 5307 to 6151 pounds
|
| Front tire: | 6.00-16
|
| 2WD Rear tire: | 11.2R24
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery volts: | 12
|
|
