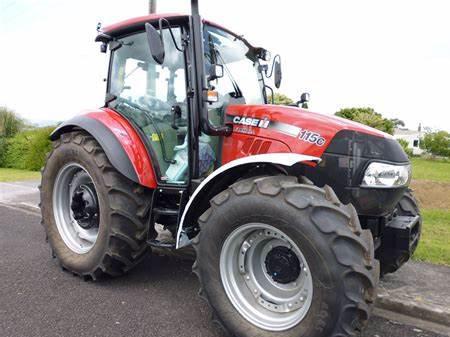

CaseIH Farmall 115C Tractors
 |
|
Power: 115 hp
Date of manufacture : 2013 - 2015 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| CaseIH Farmall 115C Power |
| Engine: | 115 hp
85.8 kW
|
| PTO (claimed): | 98 hp
73.1 kW
|
| Drawbar (tested): | 69.3 hp
51.7 kW
|
| PTO (tested): | 103.7 hp
77.3 kW
|
| CaseIH Farmall 115C Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| ROPS Brakes: | mechanical wet disc
|
| Cab Brakes: | hydraulic wet disc
|
| Cab: | Two-post foldable ROPS. Cab optional with heat and air-conditioning.
|
| Transmissions: | 12-speed mechanical shuttle
|
| | 12-speed power shuttle
|
| | 20-speed creeper
|
| Photos |
| | CaseIH Farmall 115C photos... |
| Hydraulics |
| Type: | open center
|
| Valves: | 1 or 2
|
| Pump flow: | 12.9 gpm
48.8 lpm
|
| | 16.9 gpm
64.0 lpm *Optional
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | mechanical upper-link draft sensing
|
| Rear lift (at 24"/610mm): | 5620 lbs
2549 kg
|
| Drawbar: | swinging drawbar
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| | 540/1000*Optional
|
| Dimensions & Tires |
| 4WD Wheelbase: | 89 inches
226 cm
|
| Weight: | 7937 lbs
3600 kg
|
| Rear tire: | 16.9R34
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| ROPS Battery CCA: | 730
|
| Cab Battery CCA: | 800
|
| Battery volts: | 121
|
|
