Navigation: Home > CaseIH > MX170

CaseIH MX170 Tractors

CaseIH MX170
Power: 161 hp[P]
Date of manufacture :
1998 - 2002
Production
Manufacturer:CaseIH
Original price:$82,100 (1999 )
CaseIH MX170 Power
PTO (claimed):145 hp
108.1 kW
CaseIH MX170 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard.
Transmissions:16-speed partial power shift
 32-speed creeper

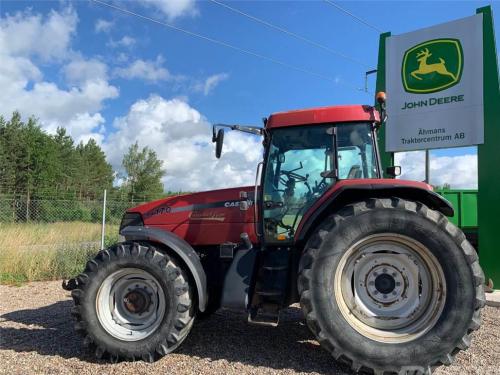

Photos
CaseIH MX170 photos...
Capacity
Fuel:92 gal
348.2 L
Hydraulic system:25.5 gal
96.5 L
Hydraulics
Type:closed center pressure-flow compensated (PFC)
Capacity:25.5 gal
96.5 L
Pressure:2950 psi
203.4 bar
Valves:2 to 4
Pump flow:28 gpm
106.0 lpm
Total flow:31.6 gpm
119.6 lpm
Tractor hitch
Rear Type:II/III/IIIN
Control:electronic lower link
Rear lift (at 24"/610mm):14,737 lbs
6684 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electrically-actuated wet disc
Rear RPM:540/1000 (1.375)
Dimensions & Tires
2WD Wheelbase:112.2 inches
284 cm
4WD Wheelbase:116.6 inches
296 cm
Weight:14100 lbs
6395 kg
Front tire:11.00-16
Rear tire:18.4R-38
Full dimensions and tires ...
MX170 Serial Numbers
1998:JJA0083000
1999:JJA0097438
2000:JJA0103445
2001:JJA0108300
2002:JJA0115301

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:95
Charging volts:12
Batteries:2
Battery CCA:950
Battery volts:12
