CaseIH MX200 Tractors

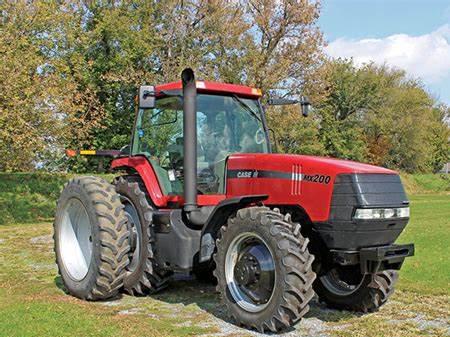

CaseIH MX200
Power: 183 hp[P]
Date of manufacture :
1999 - 2002
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
Original price:$93,000
CaseIH MX200 Power
PTO (claimed):165 hp
123.0 kW
Drawbar (tested):142.33 hp
106.1 kW
PTO (tested):193.16 hp
144.0 kW
CaseIH MX200 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:differential hydraulic wet disc
Cab:Cab standard
Transmissions:18-speed full power shift
 24-speed
Photos
CaseIH MX200 photos...
Capacity
Fuel:130 gal
492.1 L
Hydraulic system:45.5 gal
172.2 L
Hydraulics
Type:PFC
Capacity:45.5 gal
172.2 L
Valves:3
Pump flow:30 gpm
113.6 lpm
Tractor hitch
Rear Type:III,IIIN
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
 1000 (1.75)
Engine RPM:540@1982
1000@1974
Dimensions & Tires
4WD Wheelbase:118.3 inches
300 cm
Weight:19660 lbs
8917 kg
Front tire:11.00-24
Rear tire:18.4R46
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
