| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|

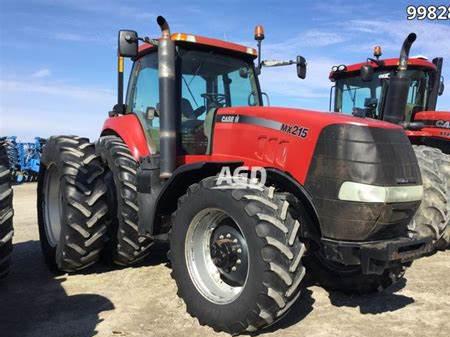

| CaseIH MX215 Power |
| Engine: | 221 hp
164.8 kW
|
| PTO (claimed): | 175 hp
130.5 kW
|
| Drawbar (tested): | 151.54 hp
113.0 kW
|
| PTO (tested): | 215.81 hp
160.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | independent hydraulic wet disc
|
| Transmissions: | 18-speed
|
| | 19-speed
|
| | 23-speed
|
| Capacity |
| Fuel: | 180 gal
681.3 L
|
| Hydraulic system: | 45.5 gal
172.2 L
|
| Hydraulics |
| Type: | PFC
|
| Capacity: | 45.5 gal
172.2 L
|
| Valves: | 3 to 5
|
| Total flow: | 38.6 gpm
146.1 lpm
|
| | 58 gpm
219.5 lpm (optional)
|
| Tractor hitch |
| Rear Type: | III
|
| Rear lift: | 13,960 lbs
6332 kg
|
| | 15,970 lbs
7243 kg (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 118.3 inches
300 cm
|
| Weight: | 21,035 lbs
9541 kg
|
| Full dimensions and tires ... |
| Electrical |
| Charging amps: | 150
|
| | 175 (optional)
|
| Battery CCA: | 2000
|
| Battery volts: | 12
|
|
