CaseIH MX275 Tractors

CaseIH MX275
Power: 275 hp
Date of manufacture :
2006 - 2007
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
CaseIH MX275 Power
Engine:275 hp
205.1 kW
PTO (claimed):225 hp
167.8 kW
Drawbar (tested):195.02 hp
145.4 kW
PTO (tested):271.58 hp
202.5 kW
CaseIH MX275 Engines
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Transmissions:18-speed
 19-speed
 23-speed

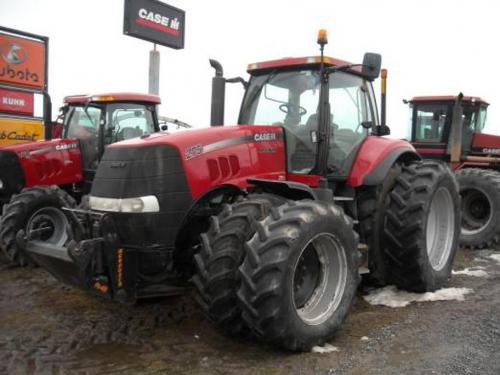

Photos
CaseIH MX275 photos...
Capacity
Fuel:180 gal
681.3 L
Hydraulic system:45.5 gal
172.2 L
Hydraulics
Type:PFC
Capacity:45.5 gal
172.2 L
Valves:3 to 5
Total flow:38.6 gpm
146.1 lpm
 58 gpm
219.5 lpm *Optional
Tractor hitch
Rear Type:III
Rear lift:14970 lbs
6790 kg
 17920 lbs
8128 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:118.3 inches
300 cm
Weight:21570 lbs
9784 kg
Full dimensions and tires ...
Electrical
Charging amps:150
 175 (optional)
Battery CCA:2000
Battery volts:12
