Power: 304 hp Date of manufacture : 2006 - 2007

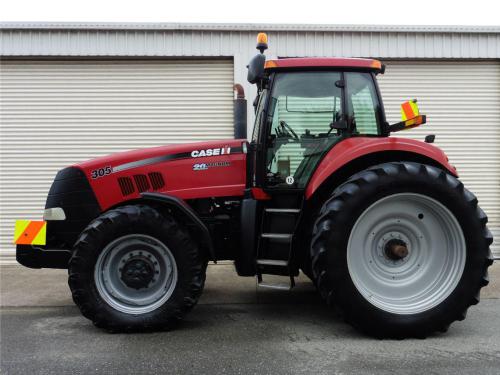

Production Manufacturer: CaseIH Type: Row-Crop tractor CaseIH MX305 Power Engine: 304 hp 226.7 kW PTO (claimed): 255 hp 190.2 kW Drawbar (tested): 220.34 hp 164.3 kW PTO (tested): 299.70 hp 223.5 kW CaseIH MX305 Engine Mechanical Chassis: 4x4 MFWD 4WD Steering: hydrostatic power Brakes: independent hydraulic wet disc Cab: Cab standard. Transmissions: 18-speed   19-speed   23-speed Capacity Fuel: 180 gal 681.3 L Hydraulic system: 45.5 gal 172.2 L Hydraulics Type: PFC Capacity: 45.5 gal 172.2 L Valves: 3 to 5 Total flow: 38.6 gpm 146.1 lpm   58 gpm 219.5 lpm (optional) Tractor hitch Rear Type: III Rear lift: 15.970 lbs 7 kg   17,920 lbs 8128 kg (optional) Power Take-off (PTO) Rear PTO: independent Rear RPM: 540/1000 Dimensions & Tires Wheelbase: 118.3 inches 300 cm Weight: 21,585 lbs 9790 kg Full dimensions and tires ... Electrical Ground: negative Charging amps: 150   175 (optional) Battery CCA: 2000 Battery volts: 12

CaseIH MX255	Power: 262 hp	Date of manufacture : 2003 - 2006

CaseIH MX270	Power: 261 hp[P]	Date of manufacture : 1999 - 2002

CaseIH MX275	Power: 275 hp	Date of manufacture : 2006 - 2007

CaseIH MX285	Power: 287 hp	Date of manufacture : 2003 - 2006

CaseIH MX305	Power: 304 hp	Date of manufacture : 2006 - 2007

CaseIH MXM120	Power: 122 hp	Date of manufacture : 2002 - 2007

CaseIH MXM130	Power: 129 hp	Date of manufacture : 2002 - 2007

CaseIH MXM140	Power: 142 hp	Date of manufacture : 2002 - 2007

CaseIH MXM155	Power: 153 hp	Date of manufacture : 2002 - 2007
