Power: 224 hp Date of manufacture : 2005 - 2011

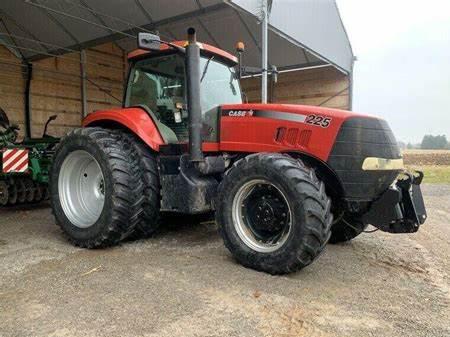

Production Manufacturer: CaseIH Type: Row-Crop tractor Factory: Racine, Wisconin, USA CaseIH Magnum 225 Power Engine (gross): 224 hp 167.0 kW CaseIH Magnum 225 Engine Mechanical Chassis: 4x4 MFWD 4WD Final drives: planetary Steering: hydrostatic power Cab: Surveyor cab standard with air-conditioning. Transmissions: 19-speed full power shift   23-speed creeper Hydraulics Type: pressure flow compensating Valves: 4 or 5 Pump flow: 37.5 gpm 141.9 lpm (early)   43.9 gpm 166.2 lpm (late)   59.2 gpm 224.1 lpm (High Flow)   75 gpm 283.9 lpm (Twin Flow) Tractor hitch Rear Type: III/IVN Rear lift (at 24"/610mm): 13850 lbs 6282 kg Power Take-off (PTO) Rear PTO: independent Rear RPM: 1000 (1.75)   540/1000 (1.375) Engine RPM: 1800@1000 Dimensions & Tires Wheelbase: 118.3 inches 300 cm Weight: 20140 lbs 9135 kg Front tire: 600/65R28 Rear tire: 620/70R42 Full dimensions and tires ... Electrical Ground: negative Battery volts: 12

CaseIH Magnum 200	Power: 200 hp	Date of manufacture : 0000 - 0000

CaseIH Magnum 210	Power: 210 hp	Date of manufacture : 2009 - 2013

CaseIH Magnum 215	Power: 221 hp	Date of manufacture : 2008 - 2011

CaseIH Magnum 220	Power: 220 hp	Date of manufacture : 0000 - 0000

CaseIH Magnum 225	Power: 224 hp	Date of manufacture : 2005 - 2011

CaseIH Magnum 225	Power: 225 hp	Date of manufacture : 2009 - 2013

CaseIH Magnum 235	Power: 235 hp	Date of manufacture : 2011 - 2013

CaseIH Magnum 240	Power: 240 hp	Date of manufacture : 0000 - 0000

CaseIH Magnum 245	Power: 248 hp	Date of manufacture : 2008 - 2011
