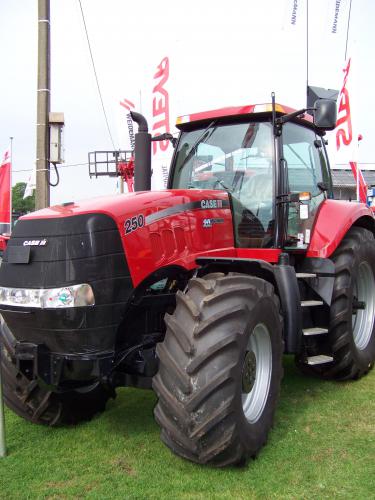

CaseIH Magnum 250 Tractors

CaseIH Magnum 250
Power: 252 hp
Date of manufacture :
2005 - 2011
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Racine, Wisconin, USA
CaseIH Magnum 250 Power
Engine (gross):252 hp
187.9 kW
CaseIH Magnum 250 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:planetary
Steering:hydrostatic power
Cab:Surveyor cab standard with air-conditioning.
Transmissions:19-speed full power shift
 23-speed creeper
Hydraulics
Type:pressure flow compensating
Valves:4 or 5
Pump flow:37.5 gpm
141.9 lpm (early)
 43.9 gpm
166.2 lpm (late)
 59.2 gpm
224.1 lpm (High Flow)
 75 gpm
283.9 lpm (Twin Flow)
Tractor hitch
Rear Type:III/IVN
Rear lift (at 24"/610mm):14790 lbs
6708 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1.75)
 540/1000 (1.375)
Engine RPM:1800@1000
Dimensions & Tires
Wheelbase:118.3 inches
300 cm
Weight:20140 lbs
9135 kg
Front tire:600/65R30
Rear tire:710/70R42
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
