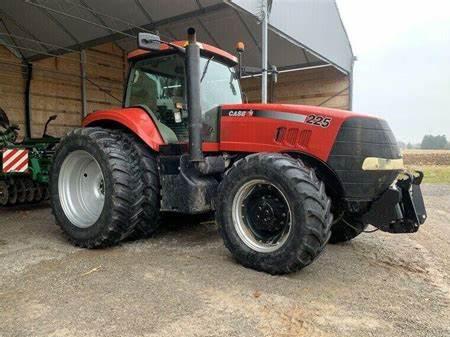

CaseIH Magnum 225 Tractors
 |
|
Power: 225 hp
Date of manufacture : 2009 - 2013 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| CaseIH Magnum 225 Power |
| Engine: | 225 hp
167.8 kW
|
| PTO (claimed): | 195 hp
145.4 kW
|
| Drawbar (tested): | 171.98 hp
128.2 kW
|
| PTO (tested): | 214.87 hp
160.2 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Cab: | Surveyor cab standard with air-conditioning.
|
| Transmission: | continuously variable transmission (CVT)
|
| Photos |
| | CaseIH Magnum 225 photos... |
| Capacity |
| Fuel: | 118 gal
446.6 L
|
| Hydraulic system: | 26.5 gal
100.3 L
|
| Hydraulics |
| Type: | Pressue Flow Compensated (PFC)
|
| Capacity: | 26.5 gal
100.3 L
|
| Valves: | 3 to 5
|
| Total flow: | 39.6 gpm
149.9 lpm
|
| Tractor hitch |
| Rear Type: | II/III
|
| Rear lift: | 12,787 lbs
5800 kg
|
| | 15,873 lbs
7199 kg (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| | 1000
|
| Dimensions & Tires |
| Wheelbase: | 118.3 inches
300 cm
|
| Weight: | 19,000 lbs
8618 kg
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 150
|
| | 200 (optional)
|
| Battery volts: | 12
|
|
