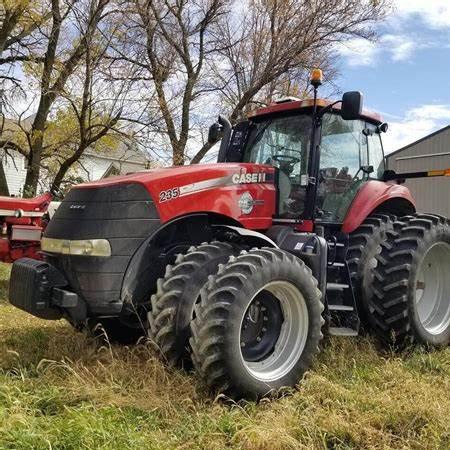

CaseIH Magnum 235 Tractors
 |
|
Power: 235 hp
Date of manufacture : 2011 - 2013 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Variants |
| New Holland T8.275 |
| CaseIH Magnum 235 Power |
| Engine (gross): | 235 hp
175.2 kW
|
| Engine (max): | 268 hp
199.8 kW
|
| PTO (claimed): | 195 hp
145.4 kW
|
| Drawbar (tested): | 172.71 hp
128.8 kW
|
| PTO (tested): | 198.86 hp
148.3 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Cab: | Magnum Surveyor cab standard. Optional cab suspension.
|
| Transmissions: | 19-speed full power shift
|
| | 18-speed full power shift
|
| | 23-speed creeper
|
| | continuously variable transmission
|
| Photos |
| | CaseIH Magnum 235 photos... |
| Hydraulics |
| Type: | pressure-flow compensating
|
| Rear valves: | 4 to 6
|
| Total flow: | 44 gpm
166.5 lpm
|
| | 59 gpm
223.3 lpm *Optional
|
| | 75 gpm
283.9 lpm *Optional
|
| Tractor hitch |
| Rear Type: | 3/3N
|
| Rear lift: | 12,800 lbs
5806 kg (3/3N 109cm links)
|
| | 14,800 lbs
6713 kg (3/3N 96cm links)
|
| | 14,375 lbs
6520 kg (3/3N 109cm links opt.)
|
| | 16,375 lbs
7427 kg (3/3N 96cm links opt.)
|
| Front Hitch: | optional
|
| Front lift: | 9426 lbs
4275 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1-3/4)
|
| | 540/1000 (1-3/8)
|
| Front PTO: | optional
|
| Front RPM: | 1000 (1-3/8)
|
| Dimensions & Tires |
| Wheelbase: | 120 inches
304 cm
|
| Weight: | 27,180 lbs
12328 kg
|
| Full dimensions and tires ... |
| Magnum 235 Serial Numbers |
| Location: | Serial number plate on the right side of the tractor frame, above the front axle.
|
photo of Magnum 235 serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
