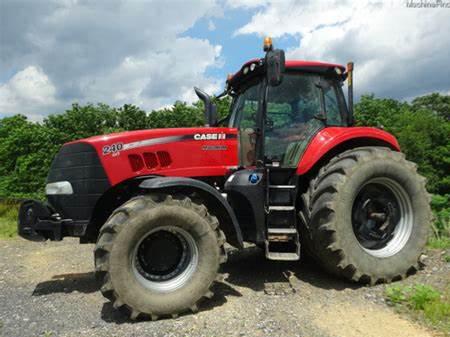

CaseIH Magnum 240 Tractors
 |
|
Power: 240 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH (a part of CNH)
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Original price: | $225,400 (2014 CVT )
|
| Original price: | $240,377 (2017 CVT )
|
| CaseIH Magnum 240 Power |
| Engine (gross): | 240 hp
179.0 kW
|
| Engine (max): | 270 hp
201.3 kW
|
| PTO (claimed): | 205 hp
152.9 kW
|
| Drawbar (tested): | 186.70 hp
139.2 kW
|
| PTO (tested): | 224.92 hp
167.7 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Magnum cab standard with air-conditioning. Optional cab suspension.
|
| Transmission: | continuously variable transmission (CVT)
|
| Photos |
| | CaseIH Magnum 240 photos... |
| Hydraulics |
| Type: | pressure flow compensating
|
| Rear valves: | 3 to 5
|
| Pump flow: | 43 gpm
162.8 lpm
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Control: | electronic lower link draft sensing
|
| Rear lift (at 24"/610mm): | 14100 lbs
6395 kg
|
| Drawbar: | Cat. 3
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 118 inches
299 cm
|
| Weight: | 22305 lbs
10117 kg
|
| Front tire: | 380/85R34
|
| Rear tire: | 480/80R46
|
| Full dimensions and tires ... |
| Magnum 240 Serial Numbers |
| Location: | Serial number plate on the front right of the tractor frame, above the front axle.
|
photo of Magnum 240 serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
