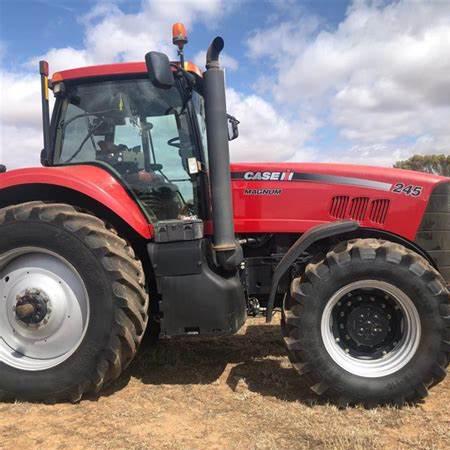

CaseIH Magnum 245 Tractors
 |
|
Power: 248 hp
Date of manufacture : 2008 - 2011 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Original price: | $180,576 (2010 )
|
| CaseIH Magnum 245 Power |
| Engine: | 248 hp
184.9 kW
|
| PTO (claimed): | 200 hp
149.1 kW
|
| Drawbar (tested): | 172.67 hp
128.8 kW
|
| PTO (tested): | 242.84 hp
181.1 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls.
|
| Transmissions: | 18-speed full powershift
|
| | 19-speed full powershift
|
| | 23-speed full powershift
|
| Photos |
| | CaseIH Magnum 245 photos... |
| Capacity |
| Fuel: | 180 gal
681.3 L
|
| Hydraulic system: | 45.5 gal
172.2 L
|
| Hydraulics |
| Type: | PFC
|
| Capacity: | 45.5 gal
172.2 L
|
| Valves: | 3 to 5
|
| Total flow: | 44 gpm
166.5 lpm
|
| | 59 gpm
223.3 lpm *Optional
|
| | 75 gpm
283.9 lpm *Optional Twin-Flow
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| | IVN/III*Optional
|
| Rear lift: | 14,070 lbs
6382 kg
|
| | 16,375 lbs
7427 kg *Optional
|
| | 18,900 lbs
8573 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| | 540/1000*Optional
|
| Dimensions & Tires |
| Wheelbase: | 118.3 inches
300 cm
|
| Weight: | 20100 to 21010 pounds
|
| Front tire: | 380/85R34
|
| Rear tire: | 480/80R46
|
| Full dimensions and tires ... | |
