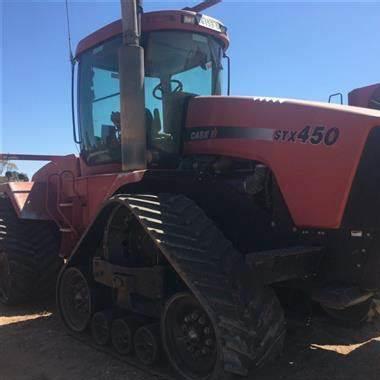

CaseIH STX450QT Tractors

CaseIH STX450QT
Power: 450 hp
Date of manufacture :
2002 - 2005
Production
Manufacturer:CaseIH
Type:Articulated Crawler tractor
Factory:Fargo, North Dakota, USA
Variants
STX450:wheeled tractor
STX450QT:crawler tractor
CaseIH STX450QT Power
Engine:450 hp
335.6 kW
PTO (claimed):395 hp
294.6 kW
Drawbar (tested):345.68 hp
257.8 kW
PTO (tested):450.29 hp
335.8 kW
CaseIH STX450QT Engine
Mechanical
Chassis:articulated crawler
Final drives:inboard planetary
Steering:hydrostatic power
Brakes:integrated hydraulic wet disc
Cab:Surveyor Cab standard.
Transmission:16-speed full power shift
Hydraulics
Type:pressure flow compensated (PFC)
Pump flow:40 gpm
151.4 lpm
 55 gpm
208.2 lpm *Optional
Tractor hitch
Rear Type:IVN/III
Rear lift (at 24"/610mm):19500 lbs
8845 kg
Power Take-off (PTO)
Rear PTO:independent*Optional
Rear RPM:1000 (1.75)
Engine RPM:1000@1998
Dimensions & Tracks
Wheelbase:154 inches
391 cm
Weight:51335 lbs
23285 kg
30-inch tracks
Full dimensions and tracks ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
