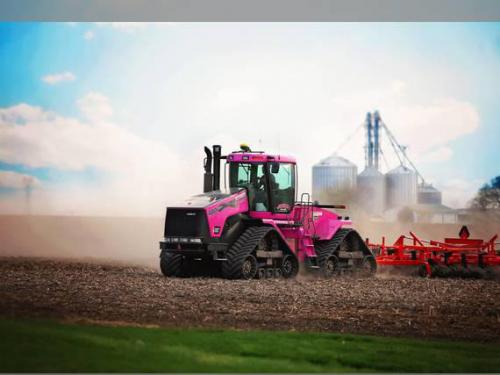

CaseIH STX480QT Tractors

CaseIH STX480QT
Power: 480 hp
Date of manufacture :
2006 - 0000
Production
Manufacturer:CaseIH
Type:Articulated Crawler tractor
Factory:Fargo, North Dakota, USA
Variants
STX480:wheeled tractor
STX5480QT:crawler
CaseIH STX480QT Power
Engine:480 hp
357.9 kW
PTO (claimed):425 hp
316.9 kW
CaseIH STX480QT Engine
Mechanical
Chassis:articulated crawler
Final drives:offset 3-planetary
Steering:hydrostatic power
Brakes:integrated hydraulic wet disc
Cab:Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating.
Transmission:16-speed full power shift
Hydraulics
Type:pressure flow compensated
Pump flow:40 gpm
151.4 lpm
 55 gpm
208.2 lpm (High-Flow)
 90 gpm
340.7 lpm (Twin-Flow)
Tractor hitch
Rear Type:IVN
Rear lift (at 24"/610mm):19728 lbs
8948 kg
Power Take-off (PTO)
Rear PTO:independent*Optional
Rear RPM:1000 (1.75)
Dimensions & Tracks
Wheelbase:154 inches
391 cm
30-inch tracks
Full dimensions and tracks ...
Electrical
Ground:negative
Battery volts:12
