CaseIH STX480 Tractors

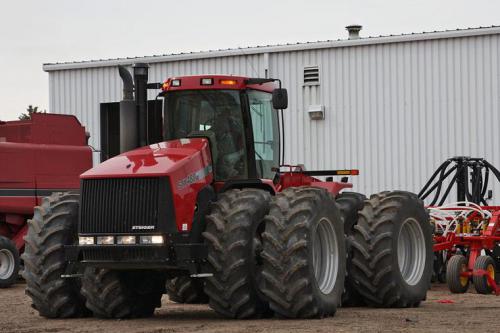

CaseIH STX480
Power: 480 hp
Date of manufacture :
2006 - 2007
Production
Manufacturer:CaseIH
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
Variants
STX480:wheeled tractor
STX5480QT:crawler
CaseIH STX480 Power
Engine:480 hp
357.9 kW
PTO (claimed):425 hp
316.9 kW
Drawbar (tested):391.15 hp
291.7 kW
PTO (tested):483.15 hp
360.3 kW
CaseIH STX480 Engine
Mechanical
Chassis:4x4 articulated 4WD
Final drives:inboard 4-planetary
 inboard compound planetary (STX480 HD)
Steering:hydrostatic power
Brakes:integrated hydraulic wet disc
Cab:Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating.
Transmission:16-speed full power shift
Hydraulics
Type:pressure flow compensated
Valves:4
Pump flow:40 gpm
151.4 lpm
 55 gpm
208.2 lpm (High capacity)
 90 gpm
340.7 lpm (TwinFlow)
Tractor hitch
Rear Type:IVN
Rear lift (at 24"/610mm):19620 lbs
8899 kg
Power Take-off (PTO)
Rear PTO:independent*Optional
Rear RPM:1000 (1.75)
Dimensions & Tires
Wheelbase:154 inches
391 cm
Weight:44645 lbs
20250 kg
Front tire:520/85R42
Rear tire:520/85R42
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
