CaseIH STX450 Tractors

CaseIH STX450
Power: 450 hp
Date of manufacture :
2002 - 2005
Production
Manufacturer:CaseIH
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
Mechanical
Chassis:4x4 articulated 4WD
Final drives:compound planetary
Steering:hydrostatic power
Brakes:integrated hydraulic wet disc
Cab:Surveyor Cab standard.
Transmission:16-speed full power shift

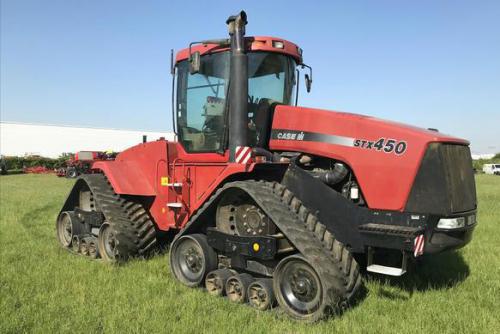

Photos
CaseIH STX450 photos...
Hydraulics
Type:pressure flow compensated (PFC)
Rear valves:4 to 7
Pump flow:40 gpm
151.4 lpm
 55 gpm
208.2 lpm *Optional
Tractor hitch
Rear Type:IVN/III
Rear lift (at 24"/610mm):19500 lbs
8845 kg
Power Take-off (PTO)
Rear PTO:independent*Optional
Rear RPM:1000 (1.75)
Dimensions & Tires
Wheelbase:154 inches
391 cm
Weight:39325 lbs
17837 kg
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
