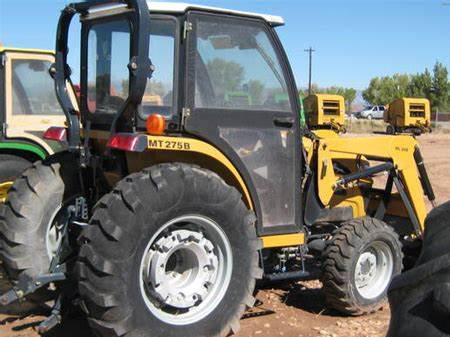

Challenger MT275B Tractors
 |
|
Power: 40 hp
Date of manufacture : 2005 - 2008 |
| Production |
| Distributor: | Challenger (a part of AGCO)
|
| Manufacturer: | Iseki
|
| Type: | Compact Utility tractor
|
| Factory: | Matsuyama, Japan
|
| Variants |
| Massey Ferguson 1540 |
| Challenger MT275B Power |
| Engine (gross): | 40.1 hp
29.9 kW
|
| Engine (net): | 38 hp
28.3 kW
|
| Gear PTO (claimed): | 31.550 hp
23.5 kW
|
| Hydro PTO (claimed): | 29.5 hp
22.0 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | spur gear
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post foldable ROPS
|
| Transmissions: | hydrostatic
|
| | 8-speed
|
| | 12-speed partially synchronized with power shuttle
|
| Capacity |
| Fuel: | 10.6 gal
40.1 L
|
| Hydraulic system: | 8.2 gal
31.0 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 8.2 gal
31.0 L
|
| Pressure: | 2276 psi
156.9 bar
|
| Rear valves: | 2*Optional
|
| Mid valves: | 2*Optional
|
| Pump flow: | 8.3 gpm
31.4 lpm
|
| Total flow: | 12.7 gpm
48.1 lpm (sync shuttle)
|
| | 13.7 gpm
51.9 lpm (power shuttle/hydro)
|
| Steering flow: | 4.4 gpm
16.7 lpm (sync shuttle)
|
| | 5.4 gpm
20.4 lpm (power shuttle/hydro)
|
| Steering press.: | 2276 psi
156.9 bar
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position and response control
|
| | optional top-link draft control
|
| Rear lift (at ends): | 2800 lbs
1270 kg
|
| Rear lift (at 24"/610mm): | 2535 lbs
1149 kg
|
| Rear Arms: | fixed link ends ((sync shuttle)
|
| | telescopic link ends (power shuttle/hydro)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540 (1.375)
|
| Mid PTO: | independent*Optional
|
| Mid RPM: | 2000 (1.00)
|
| Dimensions & Tires |
| Wheelbase: | 69.7 inches
177 cm
|
| Weight: | 3169 lbs
1437 kg
|
| Front tire: | 8-16
|
| Rear tire: | 12.4-24
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 40
|
| Battery CCA: | 630
|
| Battery volts: | 12
|
|
