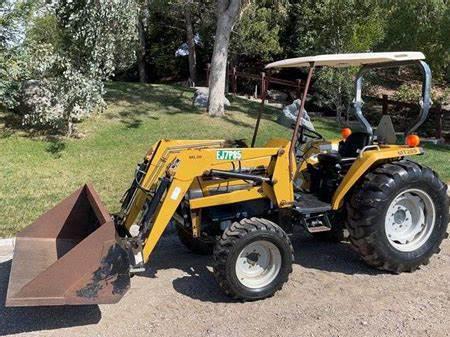

Challenger MT285 Tractors
 |
|
Power: 40 hp
Date of manufacture : 2003 - 2005 |
| Production |
| Distributor: | Challenger (a part of AGCO)
|
| Manufacturer: | Iseki
|
| Type: | Compact Utility tractor
|
| Factory: | Matsuyama, Japan
|
| Challenger MT285 Power |
| Engine (gross): | 40.1 hp
29.9 kW
|
| Gear PTO (claimed): | 32.4 hp
24.2 kW
|
| Hydro PTO (claimed): | 31.7 hp
23.6 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS
|
| Transmissions: | 16-speed power shuttle
|
| | hydrostatic
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2130 psi
146.9 bar
|
| Pump flow: | 7.7 gpm
29.1 lpm
|
| Total flow: | 12.2 gpm
46.2 lpm (gear)
|
| | 9.6 gpm
36.3 lpm (hydro)
|
| Steering flow: | 4.5 gpm
17.0 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| | draft control*Optional
|
| Rear lift (at ends): | 2,755 lbs
1249 kg (gear)
|
| | 2,866 lbs
1300 kg (hydro)
|
| Rear lift (at 24"/610mm): | 2,100 lbs
952 kg (gear)
|
| | 1,940 lbs
879 kg (hydro)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | wet disc
|
| Rear RPM: | 540 (1.375)
|
| Mid PTO: | independent*Optional
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 68.5 inches
173 cm
|
| Weight: | 3,174 lbs
1439 kg
|
| Front tire: | 8-16
|
| Rear tire: | 13.6-24
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
