Challenger MT295 Tractors
 |
|
Power: 44 hp
Date of manufacture : 2003 - 2005 |
| Production |
| Distributor: | Challenger (a part of AGCO)
|
| Manufacturer: | Iseki
|
| Type: | Compact Utility tractor
|
| Factory: | Matsuyama, Japan
|
| Challenger MT295 Power |
| Engine (gross): | 44.2 hp
33.0 kW
|
| Gear PTO (claimed): | 37.0 hp
27.6 kW
|
| Hydro PTO (claimed): | 36 hp
26.8 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS.
|
| Transmissions: | 16-speed power shuttle
|
| | hydrostatic
|
| Photos |

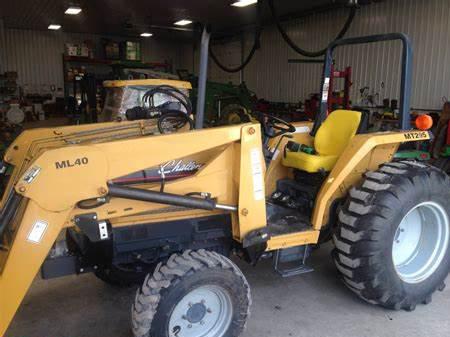

| | Challenger MT295 photos... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2275 psi
156.9 bar
|
| Pump flow: | 7.4 gpm
28.0 lpm
|
| Total flow: | 12.6 gpm
47.7 lpm
|
| Steering flow: | 5.2 gpm
19.7 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position and draft control
|
| Rear lift (at ends): | 3086 lbs
1399 kg
|
| Rear lift (at 24"/610mm): | 2600 lbs
1179 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | wet disc
|
| Rear RPM: | 540 (1.375)
|
| Mid PTO: | independent*Optional, available only with hydrostatic transmission.
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 76 inches
193 cm
|
| Weight: | 4277 to 4331 pounds
|
| Front tire: | 9.5-16
|
| Rear tire: | 13.6-28
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
