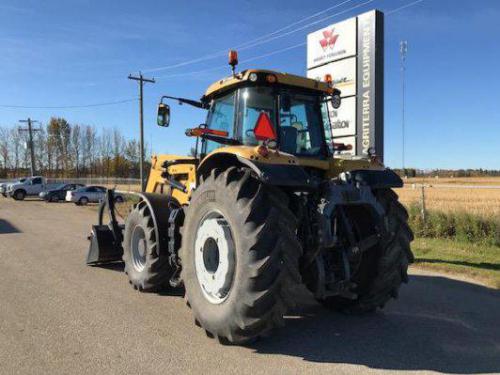

Challenger MT555E Tractors

Challenger MT555E
Power: 170 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Challenger (a part of AGCO)
Type:Row-Crop tractor
Factory:Jackson, Minnesota, USA
Challenger MT555E Power
Engine (gross):170 hp
126.8 kW
Engine (max):210 hp
156.6 kW
PTO (claimed):145 hp
108.1 kW
Drawbar (tested):131.7 hp
98.2 kW
PTO (tested):184.7 hp
137.7 kW
Challenger MT555E Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:electro-hydraulic front and rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with air-conditioning. Auto-Guide 3000
Transmissions:24-speed six-speed power shift
 continuously-variable transmission (CVT)
Capacity
Fuel:114 gal
431.5 L
Exhaust fluid (DEF):11 gal
41.6 L
Hydraulic system:26.4 gal
99.9 L
Hydraulics
Type:closed-center load sensing
Capacity:26.4 gal
99.9 L
Pressure:2900 psi
200.0 bar
Valves:4
SCV flow:26.4 gpm
99.9 lpm
Total flow:29 gpm
109.8 lpm
 39 gpm
147.6 lpm *Optional with AutoPower VI
 50 gpm
189.3 lpm *Optional with CVT
Tractor hitch
Rear Type:III/IIIN
Rear lift (at ends):13500 lbs
6123 kg
 16700 lbs
7575 kg *Lift capacity with CVT transmission.
Front Hitch:IIIN*Optional
Front lift (at ends):7954 lbs
3607 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E/1000
 540E/1000E/1000*Optional
 540/540E/1000/1000E*With CVT transmission.
Dimensions & Tires
Wheelbase:117 inches
297 cm
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
