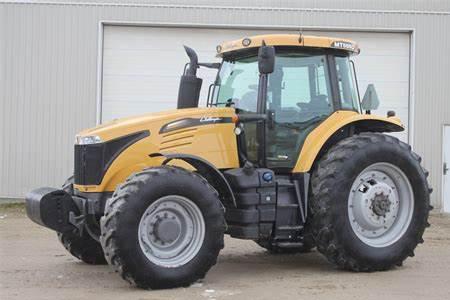

Challenger MT555D Tractors
 |
|
Power: 170 hp
Date of manufacture : 2012 - 2014 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Row-Crop tractor
|
| Factories: | Beauvais, France
|
| | Jackson, Minnesota, USA
|
| Original price: | $146,656 (2013 classic )
|
| Original price: | $171,007 (2013 deluxe )
|
| Original price: | $181,317 (2013 deluxe )
|
| Challenger MT555D Power |
| Engine: | 170 hp
126.8 kW
|
| PTO (claimed): | 140 hp
104.4 kW
|
| Drawbar (tested): | 123.8 hp
92.3 kW
|
| PTO (tested): | 173.3 hp
129.2 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | electro-hydraulic full locking
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic (optional)
|
| | pneumatic (optional)
|
| Cab: | Cab standard with air-conditioning. AGCO System 150 (optional)
|
| | AGCOMMAND (optional)
|
| Transmissions: | 24-speed six-speed power shift
|
| | continuously variable transmission
|
| Capacity |
| Fuel: | 114 gal
431.5 L
|
| Exhaust fluid (DEF): | 11 gal
41.6 L
|
| Hydraulic system: | 26.4 gal
99.9 L
|
| Hydraulics |
| Type: | closed center load sensing (CCLS)
|
| Capacity: | 26.4 gal
99.9 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 2 to 4
|
| SCV flow: | 24.3 gpm
92.0 lpm
|
| Total flow: | 29 gpm
109.8 lpm
|
| | 39 gpm
147.6 lpm (optional)
|
| Tractor hitch |
| Rear Type: | III
|
| Control: | electronic lower link draft control
|
| Rear lift (at 24"/610mm): | 12500 lbs
5670 kg (AutoPower)
|
| | 11650 lbs
5284 kg (CVT)
|
| Drawbar: | Cat. 2
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/1000
|
| | 540/540E/1000
|
| | 540E/1000E/1000
|
| Dimensions & Tires |
| Wheelbase: | 117.8 inches
299 cm
|
| Weight: | 17000 lbs
7711 kg
|
| Front tire: | 420/85R28
|
| Rear tire: | 480/80R42
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 175
|
| | 240*Total capacity with dual 120A alternator option.
|
| Batteries: | 2
|
| Battery CCA: | 600
|
| Battery volts: | 12
|
|
