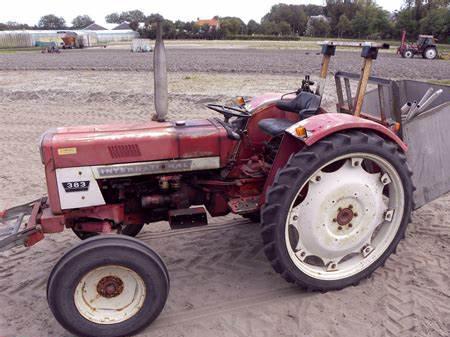

International Harvester 383 Tractors
 |
|
Power: 38 hp
Date of manufacture : 1972 - 1975 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Neuss, Germany
|
| International Harvester 383 Power |
| Engine (gross): | 38 hp
28.3 kW
|
| Engine (net): | 35 hp
26.1 kW
|
| International Harvester 383 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Cab: | Open operator station.
|
| Transmissions: | 8-speed
|
| | 16-speed creeper
|
| Photos |
| | International Harvester 383 photos... |
| Hydraulics |
| Type: | open center
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift: | 3880 lbs
1759 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 75.6 inches
192 cm
|
| Weight: | 4553 lbs
2065 kg
|
| Front tire: | 5.50-16
|
| Rear tire: | 11.2/12-28
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | generator
|
| Charging amps: | 11
|
| Charging volts: | 14
|
| Battery volts: | 12
|
| Battery AH: | 84
|
|
