International Harvester 383 Tractors
|
|
Power: 40 hp
Date of manufacture : 1982 - 1984 |
Production |
Distributor: | International Harvester
|
Manufacturer: | Komatsu
|
Type: | Utility tractor
|
Factory: | Japan
|
Original price: | $11,400 (1984 )
|
International Harvester 383 Power |
Engine: | 40 hp 29.8 kW
|
PTO (claimed): | 37 hp 27.6 kW
|
International Harvester 383 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | hydraulic wet disc
|
Cab: | ROPS and canopy optional
|
Transmission: | 8-speed gear
|
Photos |

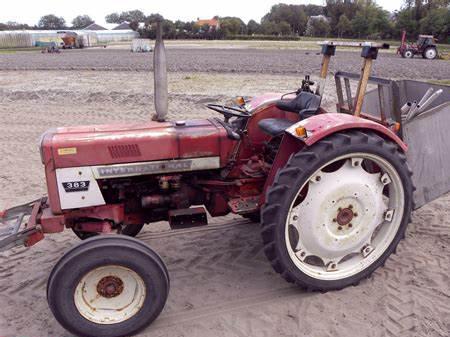

| International Harvester 383 photos... |
Capacity |
Fuel: | 15.1 gal 57.2 L
|
Hydraulic system: | 8.5 gal 32.2 L
|
Hydraulics |
Capacity: | 8.5 gal 32.2 L
|
Pressure: | 2500 psi 172.4 bar
|
Total flow: | 6.4 gpm 24.2 lpm
|
Tractor hitch |
Rear Type: | II/I
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540
|
Dimensions & Tires |
Weight: | 3484 to 3903 pounds
|
Front tire: | 6.00-16
|
Rear tire: | 13.6-28
|
Full dimensions and tires ... |
Electrical |
Charging system: | alternator
|
Charging amps: | 35
|
Battery volts: | 12
|
Battery AH: | 100
|
|
