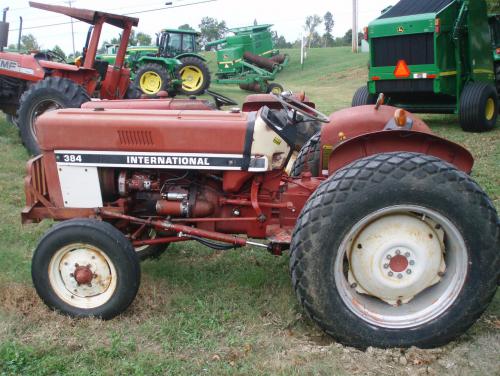

International Harvester 384 Tractors
|
|
Power: 40 hp[P]
Date of manufacture : 1977 - 1982 |
Production |
Manufacturer: | International Harvester
|
Type: | Utility tractor
|
Factory: | Bradford, England
|
Original price: | $9,500 (1982 )
|
International Harvester 384 Power |
PTO (claimed): | 36 hp 26.8 kW
|
International Harvester 384 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
Cab: | Open operator station.
|
Transmission: | 8-speed unsynchronized gear
|
Photos |
| International Harvester 384 photos... |
Capacity |
Fuel: | 12 gal 45.4 L
|
Hydraulic system: | 9.3 gal 35.2 L
|
Hydraulics |
Type: | open center
|
Capacity: | 9.3 gal 35.2 L
|
Pump flow: | 7.8 gpm 29.5 lpm
|
Tractor hitch |
Rear Type: | I
|
Rear lift: | 2600 lbs 1179 kg
|
Power Take-off (PTO) |
Rear RPM: | 540 (1.375)
|
Dimensions & Tires |
Wheelbase: | 76.5 inches 194 cm
|
Weight: | 4236 lbs 1921 kg
|
Front tire: | 6.00-16
|
Rear tire: | 13.6-28
|
Full dimensions and tires ... |
384 Serial Numbers |
Location: | clutch housing on right side
|
1978: | 501
|
1979: | 1664
|
1980: | 2508
|
1981: | 3818
|
1982: | 4530
|
how to read serial numbers...
|
Electrical |
Ground: | negative
|
Charging amps: | 28
|
Battery CCA: | 605
|
Battery volts: | 12
|
|
