International Harvester 544 Tractors
 |
|
Power: 57 hp[P]
Date of manufacture : 1968 - 1973 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 13,000
|
| Original price: | $7,500 (1973 )
|
| Variants |
| Farmall 544: | row-crop tractor
|
| 2544: | industrial tractor
|
| International Harvester 544 Power |
| Drawbar (claimed): | 45.4 hp
33.9 kW
|
| PTO (claimed): | 52 hp
38.8 kW
|
| Drawbar (tested): | 44.74 hp
33.4 kW
|
| PTO (tested): | 55.52 hp
41.4 kW
|
| International Harvester 544 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | disc
|
| Cab: | Open operator station.
|
| Transmissions: | 5-speed gear
|
| | 10-speed two-speed power shift
|
| | hydrostatic
|
| | 5-speed shuttle
|

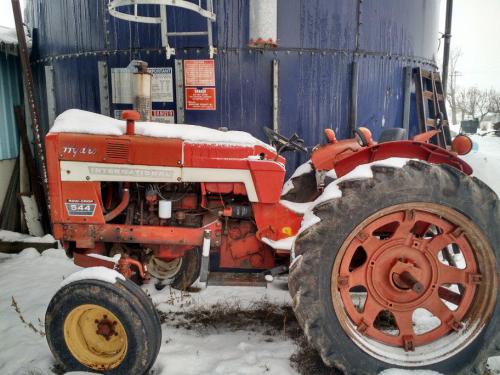

| Photos |
| | International Harvester 544 photos... |
| Hydraulics |
| Pump flow: | 6 gpm
22.7 lpm
|
| Total flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | 2
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 73 inches
185 cm
|
| Weight: | 4980 to 7215 pounds
|
| Front tire: | 6.00-16
|
| Rear tire: | 14.9-28
|
| Full dimensions and tires ... |
| 544 Serial Numbers |
| Location: | Serial number plate on the right side of the tractor, on the clutch housing.
|
| 1968: | 10250
|
| 1969: | 12699
|
| 1970: | 14589
|
| 1971: | 16018
|
| 1972: | 16838
|
| 1973: | 17341
|
how to read serial numbers...
| |
