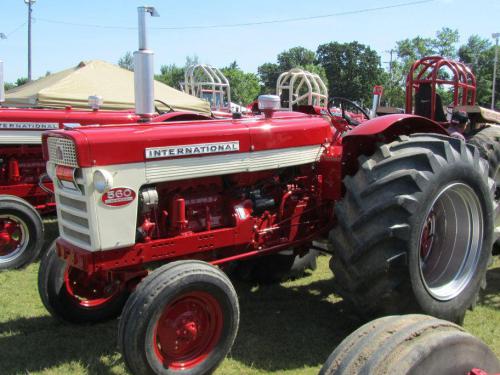

International Harvester 560 Tractors
 |
|
Power: 72 hp
Date of manufacture : 1958 - 1963 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Standard-tread tractor
|
| Total built: | 65,982
|
| Original price: | $5,500 (1963)
|
| Variants |
| Farmall 560: | row-crop
|
| Hi-Clear: | high-crop
|
| International Harvester 560 Power |
| Engine: | 72.5 hp
54.1 kW
|
| Drawbar (claimed): | 54.8 hp
40.9 kW
|
| PTO (claimed): | 59.48 hp
44.4 kW
|
| Plows: | 5
|
| Drawbar (tested): | 44.83 hp
33.4 kW
|
| PTO (tested): | 61.04 hp
45.5 kW
|
| International Harvester 560 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| | hydrostatic power optional
|
| Brakes: | independent mechanical disc
|
| Cab: | Open operator station.
|
| Transmissions: | 5-speed
|
| | 10-speed
|
| Photos |
| | International Harvester 560 photos... |
| Capacity |
| Fuel: | 33 gal
124.9 L (gas/diesel)
|
| | 37.5 gal
141.9 L LP
|
| Hydraulic system: | 16 gal
60.6 L
|
| Hydraulics |
| Capacity: | 16 gal
60.6 L
|
| Valves: | 2
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Total flow: | 12 gpm
45.4 lpm
|
| | 17 gpm
64.3 lpm (optional)
|
| Steering flow: | 2.5 gpm
9.5 lpm
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 85.5 inches
217 cm
|
| Weight: | 6563 to 6785 pounds
|
| Front tire: | 6.50-18
|
| Rear tire: | 16.9/14-30
|
| 560 Serial Numbers |
| Location: | Clutch housing, right side
|
photo of 560 serial number
| | 1958: | 501
|
| 1959: | 1210
|
| 1960: | 3103
|
| 1961: | 4032
|
| 1962: | 4944
|
| 1963: | 5598
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 11 inches
27 cm
|
| Width: | 7.5 inches
19 cm
|
|
