International Harvester 533 Tractors

International Harvester 533
Power: 45 hp
Date of manufacture :
1975 - 1989
Production
Manufacturer:International Harvester
Type:Utility tractor
Factory:Neuss, Germany
Variants
533:utility
533V:vineyard
International Harvester 533 Power
Engine:45 hp
33.6 kW
International Harvester 533 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:manual
Steering:power*Optional, available with four-wheel drive.
Cab:Open operator station. Cab optional.
Transmissions:8-speed
 16-speed
 16-speed creeper

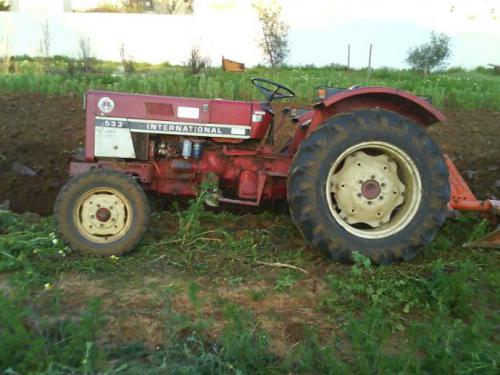

Photos
International Harvester 533 photos...
Capacity
Fuel:15.85 gal
60.0 L
Hydraulic system:3.2 gal
12.1 L
Hydraulics
Capacity:3.2 gal
12.1 L
Pump flow:8.6 gpm
32.6 lpm
Tractor hitch
Rear Type:II
Rear lift:3969 lbs
1800 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
2WD Wheelbase:81.5 inches
207 cm
4WD Wheelbase:79.9 inches
202 cm
Weight:4938 to 6107 pounds
Front tire:6.50-16
2WD Rear tire:14.9R28
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:33
Battery volts:12
