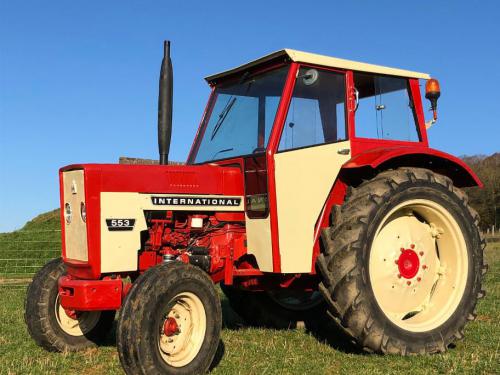

International Harvester 553 Tractors
 |
|
Power: 52 hp
Date of manufacture : 1972 - 1974 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Neuss, Germany
|
| International Harvester 553 Power |
| Engine: | 52 hp
38.8 kW
|
| International Harvester 553 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | manual
|
| Brakes: | dry disc
|
| Cab: | Open operator station.
|
| Transmissions: | 8-speed partially synchronized
|
| | 12-speed partial power shift
|
| Photos |
| | International Harvester 553 photos... |
| Capacity |
| Fuel: | 18.5 gal
70.0 L
|
| Hydraulic system: | 4.4 gal
16.7 L
|
| Rear axle: | 3.7 qts
3.5 L
|
| Hydraulics |
| Capacity: | 4.4 gal
16.7 L
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift: | 4410 lbs
2000 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| | 540/1000*Optional
|
| Dimensions & Tires |
| Wheelbase: | 78.7 inches
199 cm
|
| Weight: | 5950 to 6383 pounds
|
| Front tire: | 9-24
|
| Rear tire: | 16.9/14-30
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | generator
|
| Charging amps: | 11
|
| Charging volts: | 12
|
| Battery volts: | 12
|
| Battery AH: | 135
|
|
