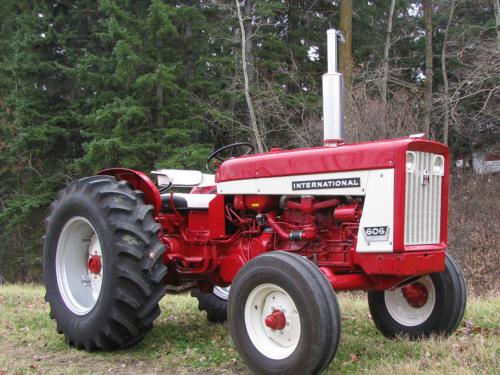

International Harvester 606 Tractors
 |
|
Power: 55 hp[P]
Date of manufacture : 1962 - 1967 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Total built: | 7,348
|
| Original price: | $4,900 (1967 )
|
| International Harvester 606 Power |
| Drawbar (claimed): | 45 hp
33.6 kW
|
| PTO (claimed): | 50 hp
37.3 kW
|
| Drawbar (tested): | 46.71 hp
34.8 kW
|
| PTO (tested): | 54.31 hp
40.5 kW
|
| International Harvester 606 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Brakes: | independent mechanical disc
|
| Cab: | Open operator station.
|
| Transmissions: | 10-speed
|
| | 5-speed
|
| Photos |
| | International Harvester 606 photos... |
| Hydraulics |
| Valves: | 0 to 2
|
| Total flow: | 12 gpm
45.4 lpm
|
| | 17 gpm
64.3 lpm *Optional
|
| Tractor hitch |
| Rear Type: | II/I
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@2000
|
| Dimensions & Tires |
| Wheelbase: | 78 inches
198 cm
|
| Weight: | 5215 to 5465 pounds
|
| Front tire: | 6.00-16
|
| Rear tire: | 14.9-28
|
| 606 Serial Numbers |
| Location: | Serial number plate on the clutch housing on the right side of tractor.
|
photo of 606 serial number
| | 1962: | 501
|
| 1963: | 1702
|
| 1964: | 3214
|
| 1965: | 5041
|
| 1966: | 6960
|
| 1967: | 7922
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 11 inches
27 cm
|
| RPM: | 1062
|
| Speed: | 3057 ft/min
931.77 meters/min
|
|
