International Harvester 634 Tractors
|
|
Power: 66 hp
Date of manufacture : 1968 - 1972 |
Production |
Manufacturer: | International Harvester
|
Factory: | Doncaster, England
|
Total built: | 3,848
|
International Harvester 634 Power |
Engine: | 66 hp 49.2 kW
|
PTO (claimed): | 59.3 hp 44.2 kW
|
International Harvester 634 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 4WD*Four-wheel drive conversion by County
|
2WD Steering: | manual
|
4WD Steering: | power
|
Brakes: | mechanical disc
|
Cab: | Open operator station. Cab optional.
|
Transmission: | 8-speed
|
Photos |

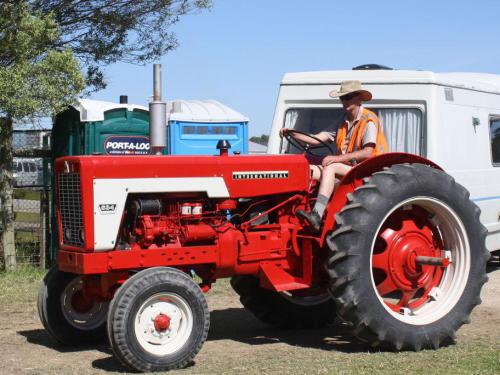

| International Harvester 634 photos... |
Hydraulics |
Pressure: | 2500 psi 172.4 bar
|
Pump flow: | 10.4 gpm 39.4 lpm
|
Steering flow: | 4.8 gpm 18.2 lpm
|
Steering press.: | 1500 psi 103.4 bar
|
Tractor hitch |
Rear Type: | II
|
Control: | position and draft control
|
Rear lift: | 3360 lbs 1524 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540 (1.375)
|
Engine RPM: | 540@1458
|
Dimensions & Tires |
2WD Wheelbase: | 86.8 inches 220 cm
|
4WD Wheelbase: | 86.8 inches 220 cm
|
AWD Wheelbase: | 75 inches 190 cm
|
Weight: | 6546 to 9574 pounds
|
Front tire: | 7.50-16
|
2WD Rear tire: | 11-38
|
Full dimensions and tires ... |
Electrical |
Charging system: | generator
|
Battery volts: | 12
|
Battery AH: | 95
|
|
