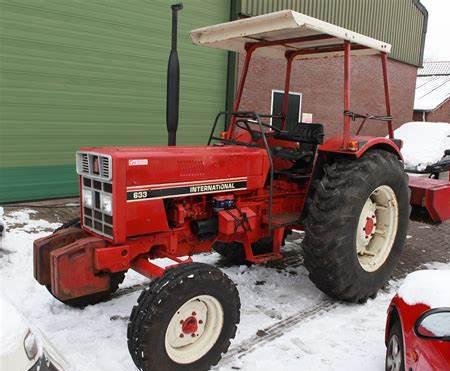

International Harvester 633 Tractors
 |
|
Power: 52 hp
Date of manufacture : 1975 - 1978 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Neuss, Germany
|
| Variants |
| 633: | utility
|
| 633E: | narrow
|
| 633V: | vineyard
|
| International Harvester 633 Power |
| Engine: | 52 hp
38.8 kW
|
| International Harvester 633 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Brakes: | disc
|
| Cab: | Open operator station. Cab optional with heater.
|
| Transmissions: | 8-speed
|
| | 16-speed
|
| Capacity |
| Fuel: | 15.85 gal
60.0 L
|
| Hydraulic system: | 3.2 gal
12.1 L
|
| Hydraulics |
| Capacity: | 3.2 gal
12.1 L
|
| Pump flow: | 8.6 gpm
32.6 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift: | 3969 lbs
1800 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| 2WD Wheelbase: | 81.5 inches
207 cm
|
| 4WD Wheelbase: | 79.9 inches
202 cm
|
| Weight: | 5158 to 5589 pounds
|
| Front tire: | 6.50-16
|
| 2WD Rear tire: | 12.4/11-36
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Battery volts: | 12
|
|
